How to shorten the process trial production cycle and reduce the cost of casting trial production？

CASTSOFTCAD module is used to design the precision casting process of valve body steel castings,

Determine the pouring position of the casting and calculate its pouring system.

The temperature field and possible defects during casting solidification are analyzed by CASTSOFT CAE module.

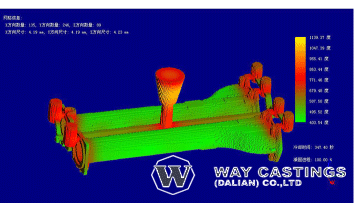

Fire hydrant temperature analysis chart

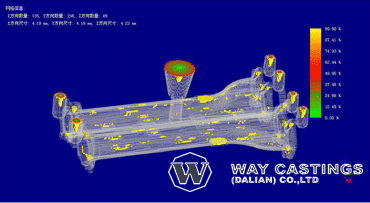

Analysis diagram of shrinkage cavity of fire hydrant

The actual production results show that the simulation results of CASTSOFT software are consistent with the reality, The combination of CASTSOFT CAD / CAE casting process design and process simulation module can shorten the process trial production cycle and reduce the process trial production cost.

Temperature analysis diagram of through valve

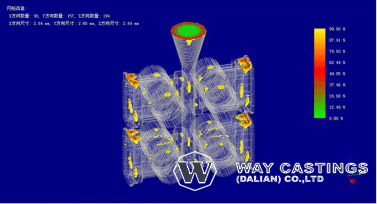

Analysis diagram of through valve shrinkage

CASTSOFE / CAE casting process simulation module was used to simulate the casting process, Through the simulation of mold filling process and solidification process and defect analysis, a feasible casting scheme is obtained.
